Fusion power has crossed an important scientific line, but its next test may be harder: making enough money to justify building the plants. A new MIT-led framework argues that commercial success will depend on more than producing net energy.
The work, published in the Journal of Fusion Energy, was co-authored by MIT professors Dennis Whyte and Andrew W. Lo with researchers from Rutherford Energy Ventures and MIT’s Plasma Science and Fusion Center. Their goal is to give fusion developers a common way to judge whether a power plant can generate an economic return.
“It’s all the things that come along with finding, allocating, and spending money at this scale,” Whyte said. “This is critical to what we do. We should look at the economics. If we want this technology to actually be meaningful in the world economy, we have to start getting straight with ourselves about these topics.”
Fusion harnesses the reaction that powers stars by combining light nuclei. The fuel exists as plasma, which can be confined with magnets or driven by powerful lasers. In 2022, researchers at the National Ignition Facility in California achieved a fusion reaction with positive energy gain.
Fusion science has long relied on the Lawson Criterion, developed in the 1950s. It describes combinations of temperature, plasma density, and energy confinement time that can produce net energy from fusion.
The criterion also produces a measure known as plasma Q, the ratio of fusion power generated to the external power needed to sustain the plasma. Whyte and Lo adapted that logic to economics.
“The Lawson Criterion describes the scientific success of energy gain from fusion plasmas, while our framework generally describes economic Q, which is the ratio of capital gained to that expended,” Whyte said.

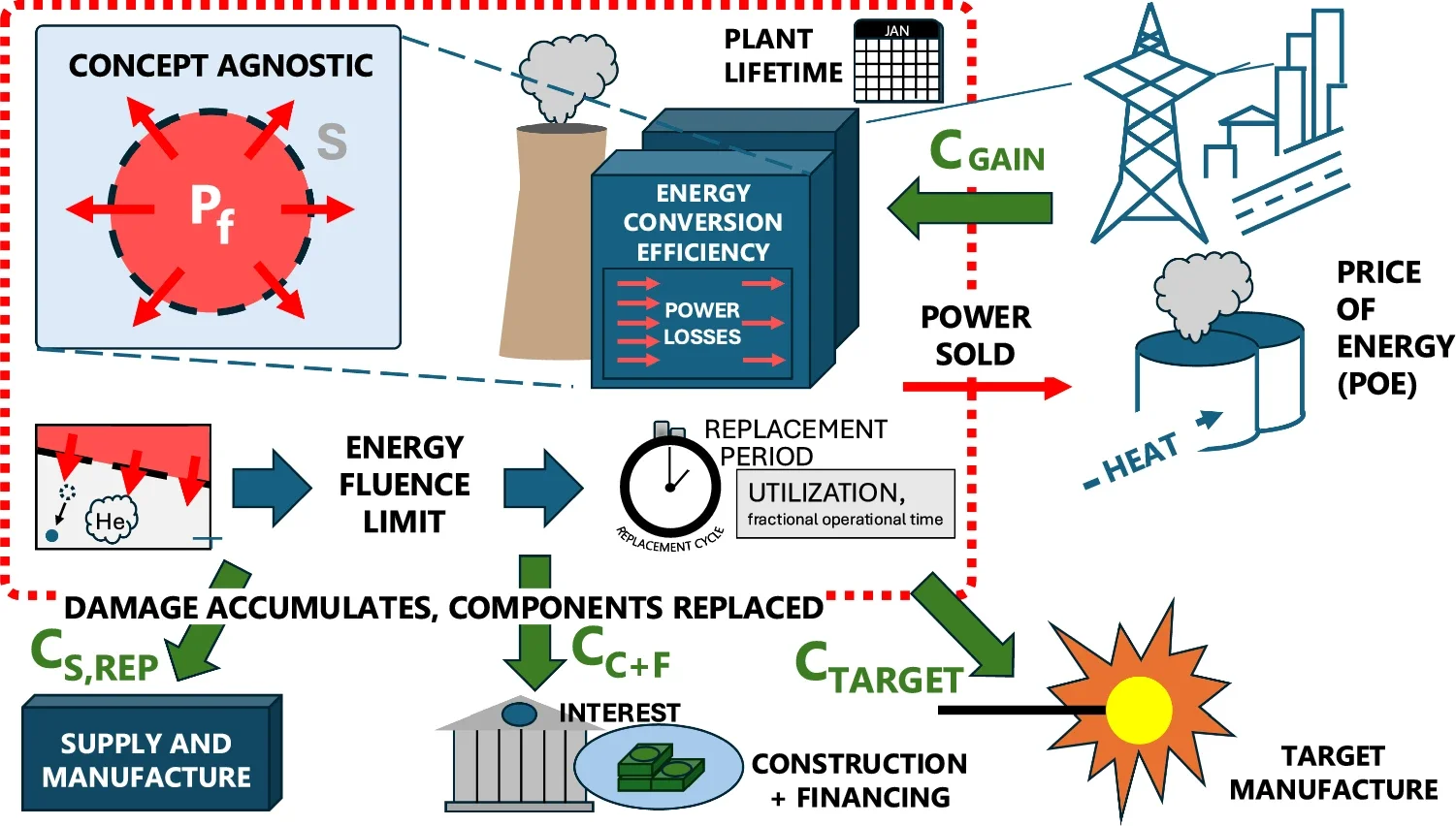

Their model uses 10 controlling parameters spanning physics, engineering, construction, operations, financing, and energy markets. The key requirement is an economic Q greater than 1. That means the economic value produced must exceed the costs included in the model. The authors stress that this is necessary, but not sufficient, for real commercial viability.

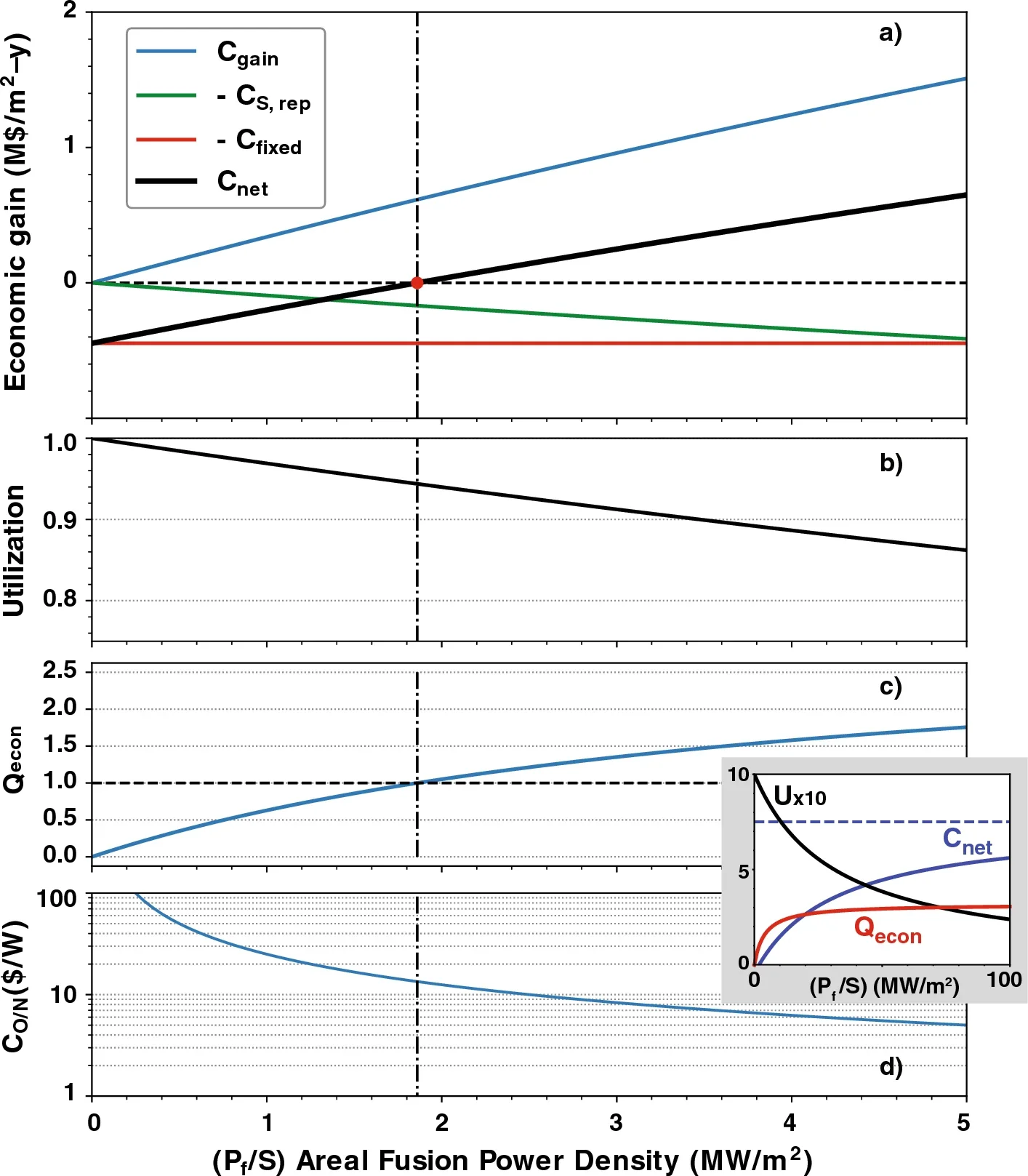

One of the model’s most striking results concerns fusion power density, or how much fusion power moves through a given surface area around the reaction.
Low power density might seem attractive because components would wear out more slowly. The model reaches the opposite economic conclusion. If power density falls too far, the plant cannot produce enough revenue to recover construction and financing costs.
Across broad sensitivity tests, the researchers repeatedly found a threshold power density for basic economic viability. Existing commercial fusion plant studies independently fall in a similar range, even though those designs were developed from specific engineering concepts.

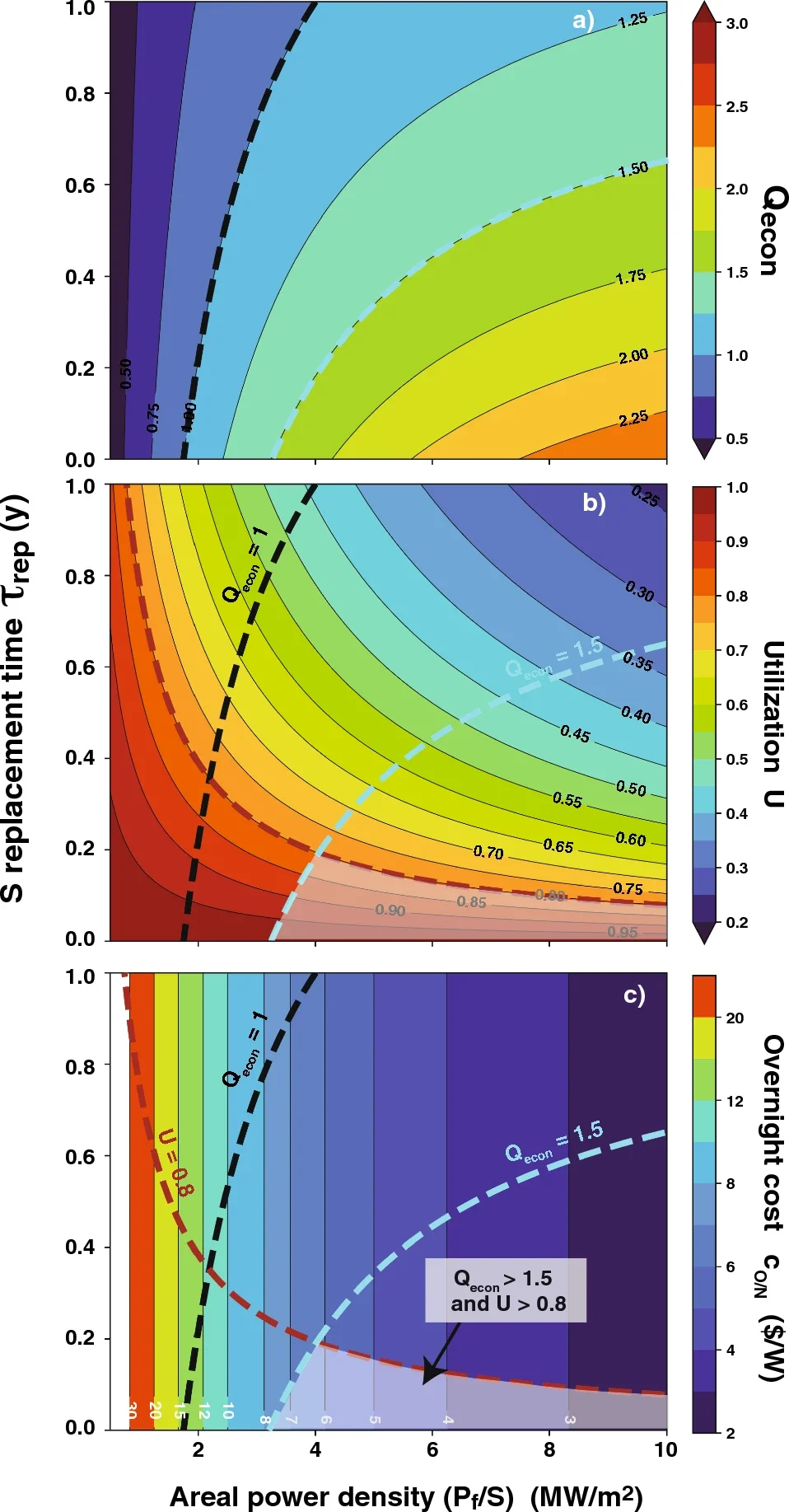

Increasing power density improves economic gain when the plant is already selling energy profitably. But the model also shows diminishing returns at very high levels because the energy-extracting surface wears out faster and requires more downtime.
That creates a tension between power production and plant availability. More output can mean more revenue, but it may also consume component lifetime faster.
The analysis places unusual emphasis on the surface surrounding the fusion region, which the authors call S. All fusion energy must ultimately pass through this boundary before becoming a commercial product.

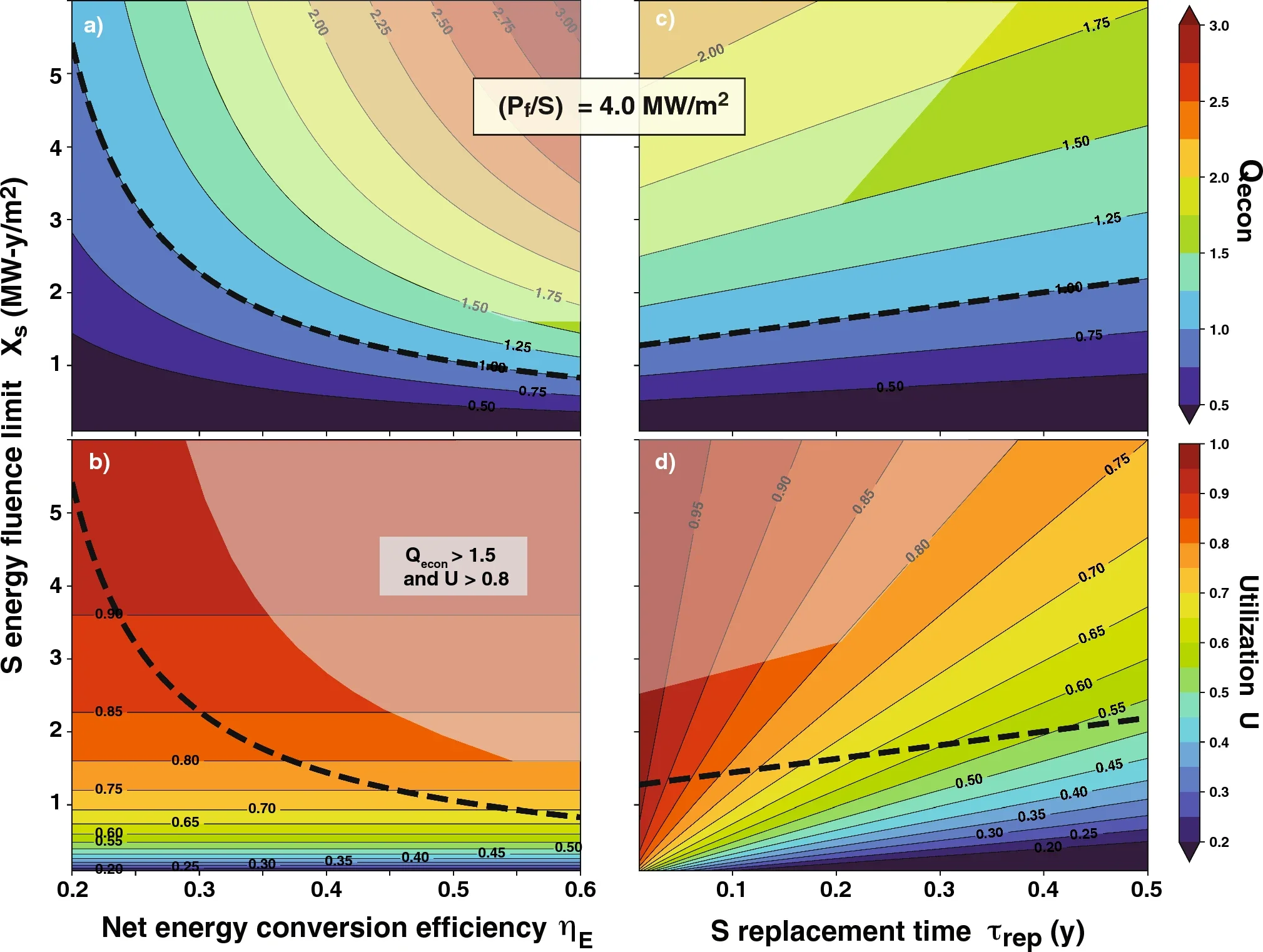

That surface and related components can face damage from energetic particles, neutrons, plasma exhaust, photons, and helium accumulation, depending on the design. The model treats durability as an energy-fluence limit, meaning the total fusion energy that can pass through before replacement becomes necessary.
But the researchers found that extreme durability is not necessarily the best economic target.
Their sensitivity analysis indicates that replacing these components quickly and cheaply can matter more than making them last as long as possible. The authors note that replacing ITER’s 740 blanket shield modules is expected to take two years using remote handling. Future commercial plants would need much shorter maintenance periods under the framework’s assumptions.
“This pattern of learning by doing exists in all deep technology sectors,” Lo said, noting that sequencing a human genome is now a million times cheaper than about 25 years ago. “We’re going to see the same thing, but maybe not to the same degree, in fusion energy.”
The framework also shows how strongly financing conditions can affect technical design.
Higher interest rates force a plant toward higher power density to preserve economic returns. Yet higher power density can increase technical difficulty and risk. That risk could then raise borrowing costs further.
The authors therefore conclude that low-cost financing will be important, especially for early fusion plants. They discuss public loan guarantees, contracts-for-difference, capacity payments, and other mechanisms that could lower financing costs or stabilize revenue.
The model is aimed most directly at mature, nth-of-a-kind fusion plants rather than the first commercial facilities. It assumes steady operations and economic conditions over a plant’s life. It does not fully capture net present value, internal rate of return, tax treatment, depreciation, market volatility, or every upfront development and regulatory cost.
Those exclusions matter. Economic Q above 1 is a basic threshold, not proof that a project will attract investors or succeed in a real market.
The framework gives fusion developers a way to compare different plant concepts using the same economic language. Teams can examine how power density, component life, replacement time, plant cost, financing, efficiency, and energy prices interact.
It also gives engineers a clearer way to judge tradeoffs. Spending heavily to extend component life may make little sense if cheaper materials can be replaced quickly. Raising power density may improve returns, but only until maintenance and physical limits begin eroding the advantage.
“When you’ve got a framework to evaluate it in a quantitative way, it tells you about the literal worth of making a particular design decision,” Whyte said. “That seems to me at this moment of fusion development absolutely critical, and what we’ve been missing.”
Here are five expert resources to help you dig deeper into fusion energy and recent progress in the field.
Research findings are available online in the Journal of Fusion Energy.
